Cojinete de vástago de dirección Moto Guzzi Serie Piccola kit rodillo completo

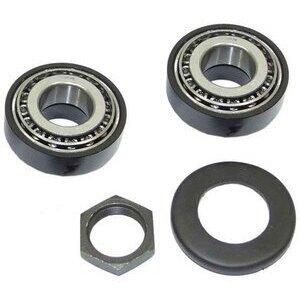

Steering bearing conversion kit suitable for several Moto Guzzi models Serie Piccola: this kit allows to replace the classic ball bearings with modern roller bearings. Complete kit for installation without modification: kit contains 2 roller bearings, 2 bearing seats, 2 steering head mounting seats, dust cover and steering head nut.

Steering bearing mounting seat dimensions:

• upper part bearing seat: outer diameter 58mm, inner diameter 54mm, inner height 14mm, outer height 16mm
• lower part inside the headstock: inner diameter 22.8mm, outer diameter 26.7mm
• upper part with bearing installed: total outer height 20.7mm

NOTE! It is possible that this kit may not fit on all models visible in the compatibility table: on some models the distance between the lower fork bridge and the upper fork bridge does not allow the installation of the kit. Please make sure that the sum of the 2 total outer heights of the mounting seats with bearing installed (51.4mm) and that of your headstock matches the distance between the 2 steering fork bridges.
